Transformers

Transformers

Custom transformers are critical components for a wide range of applications, offering versatility in power conversion, voltage regulation, and impedance matching. Sigma’s high-frequency transformers are designed for various configurations, including power, step-up/step-down, autotransformers, flyback, impedance matching, and telemetry. Their designs feature multiple core architectures such as toroid, pot core, E-core, RM core, C-core, and planar, allowing for tailored solutions to meet specific operational needs.

Engineered for Extreme Environments

These transformers are engineered to operate across a broad size range and can withstand extreme temperature conditions up to 300˚C, ensuring reliable performance in demanding environments. With the capacity to handle high voltages, Sigma’s transformers provide robust and efficient power management solutions.

Manufactured to the highest quality standards

Each custom assembly follows detailed written procedures, ensuring precision at every stage. The manufacturing process is video documented for customer transparency and thorough testing is conducted to ensure top performance and reliability. Sigma is proud to be ISO 9001 certified ensuring carefully documented processes and quality procedures.

Flyback Transformers (CCM, DCM)
Push-Pull Transformers
Forward Converter Transformers
Pulse Transformers
Audio Transformers

Current Transformers
Isolation Transformers
Power Transformers
Step Up/Step Down Transformers
Autotransformers

Telemetry Transformers
Impedance Matching Transformers
Signal Transformers
Gate Drive Transformers

Engineered for Extreme Environments

Manufactured to the highest quality standards

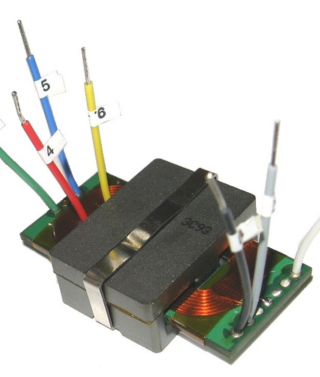

Planar Transformer with Integrated PCB Winding

Transformer with Self Terminating Copper wires glued with Epoxy

Transformer

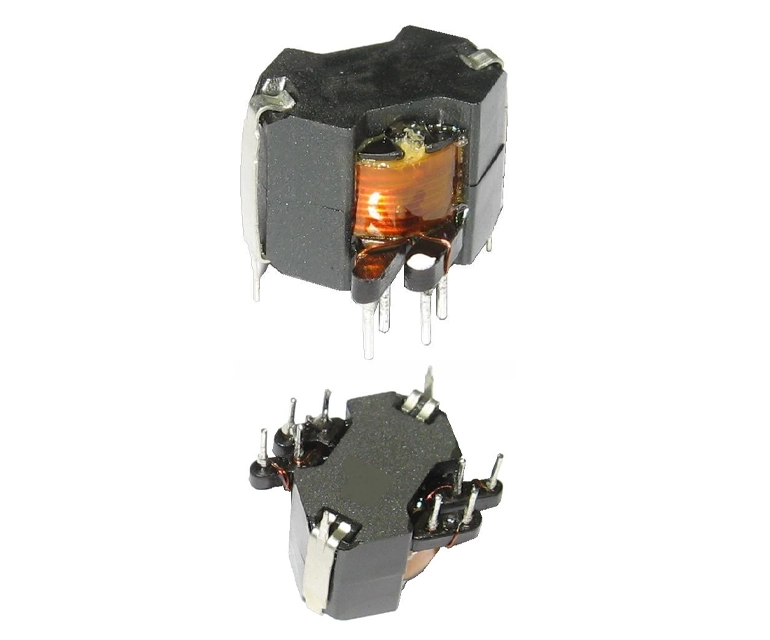

Transformer with Through Hole Pins

Pot Core Transformer with Soft Leads

Pot Core Transformer with Self Terminating Copper Wires

Lamination Transformer with Horizontal Channel Frame

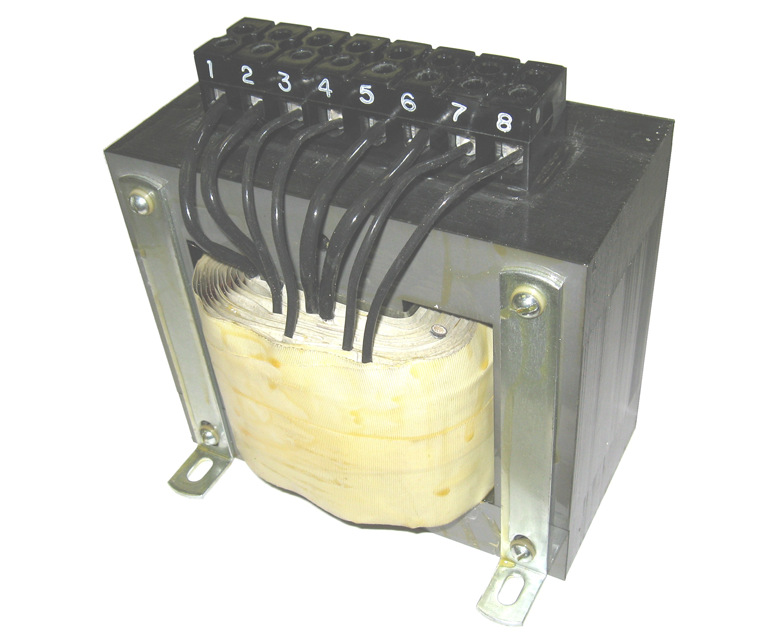

Lamination Transformer terminated to Terminal Block and with L Brackets

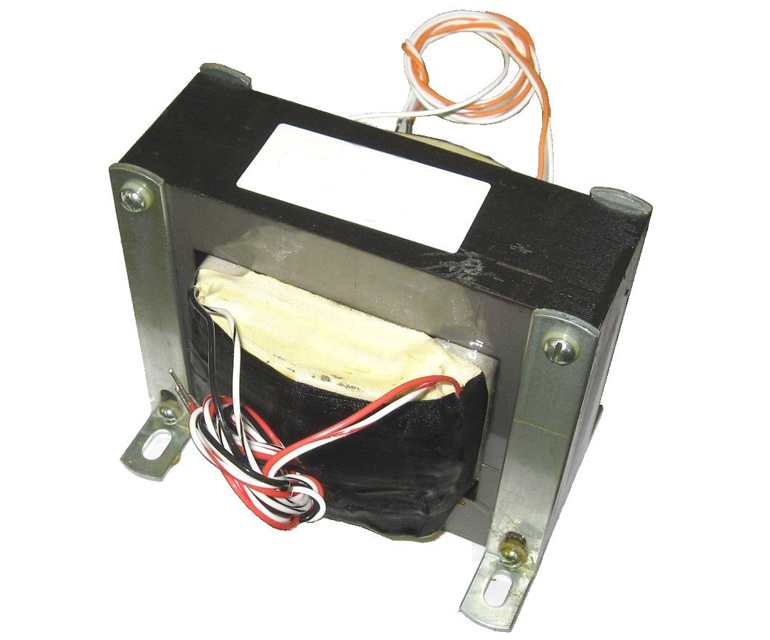

Lamination Transformer Terminated to Soft Leads and with L Brackets

Lamination Transformer terminated to Soft Leads and with Horizontal Channel Frame

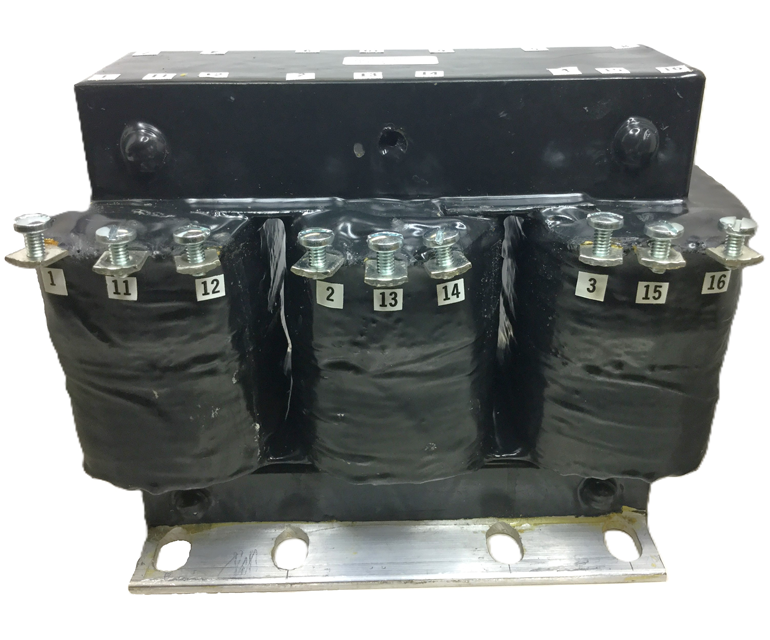

Lamination Three Phase Transformer

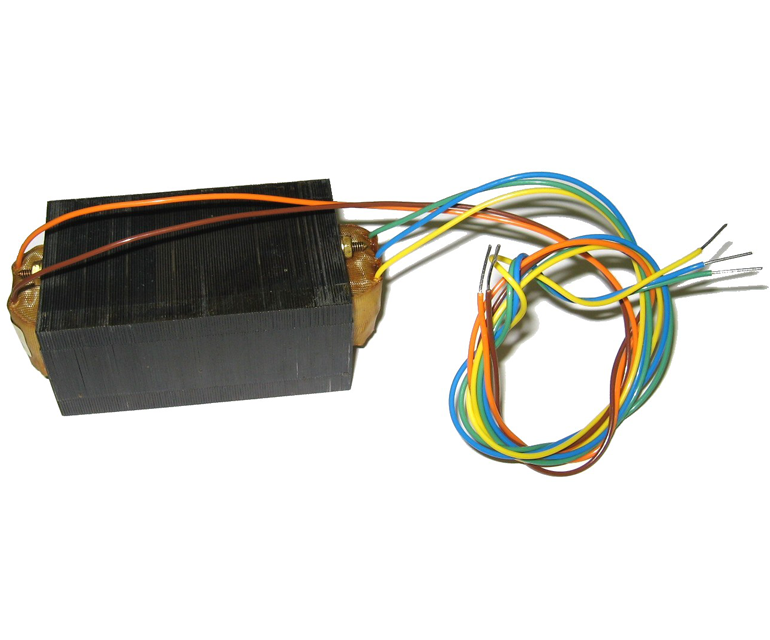

Lamination Power Transformer Terminated to Soft Leads

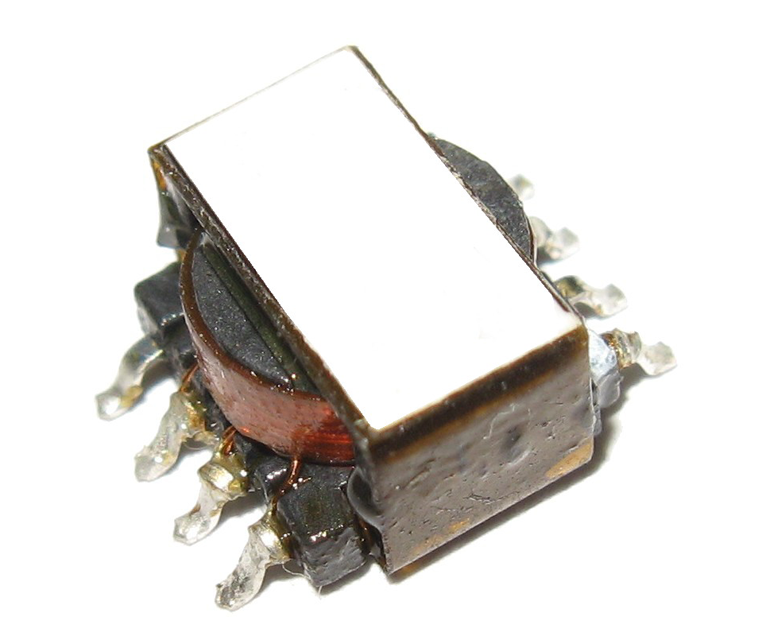

Transformer with Surface Mount Pins

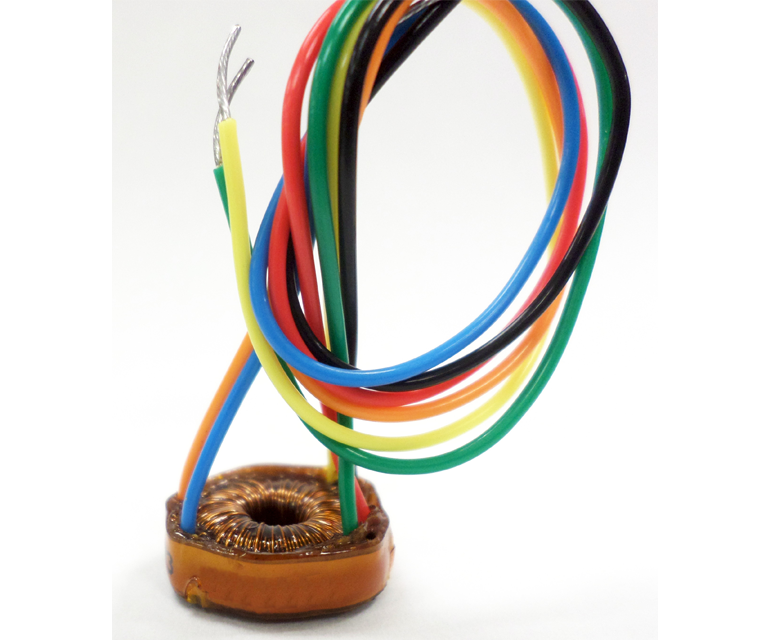

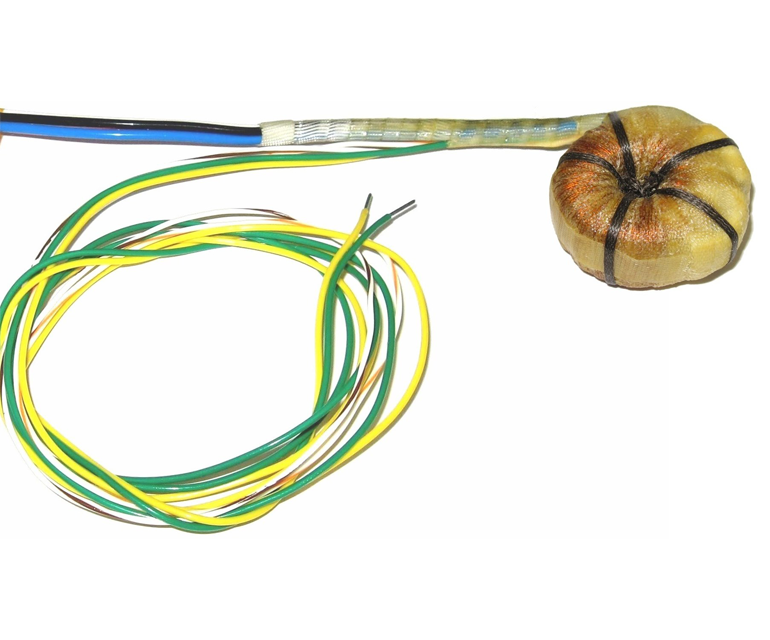

Toroid Transformer with Soft Leads

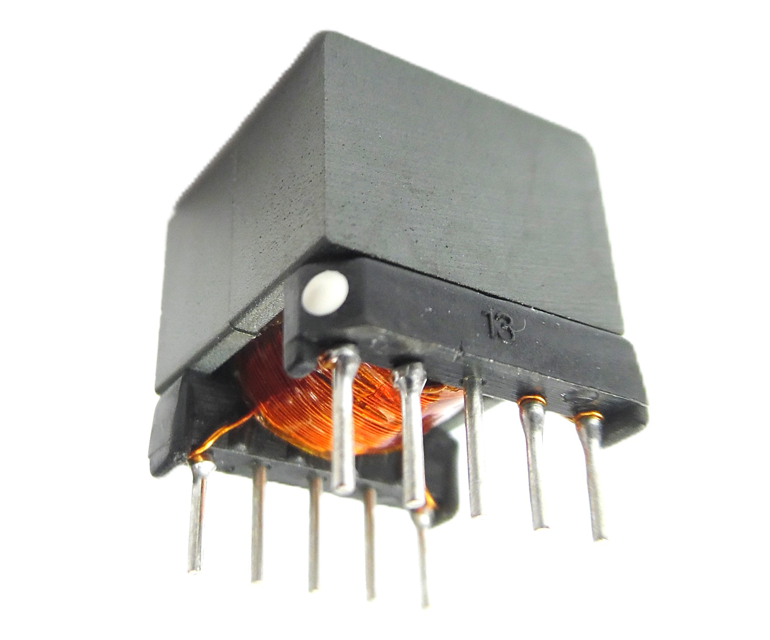

EP Transformer with Through Hole pins

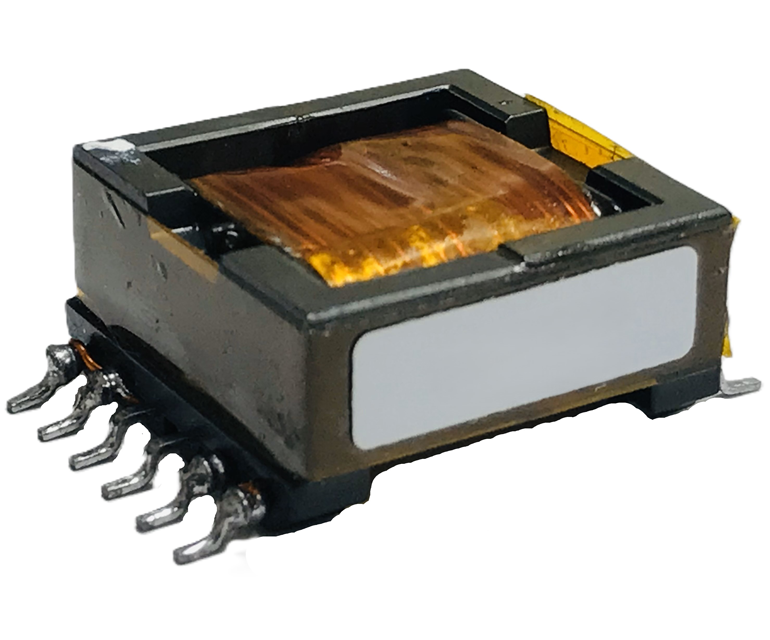

EFD Transformer

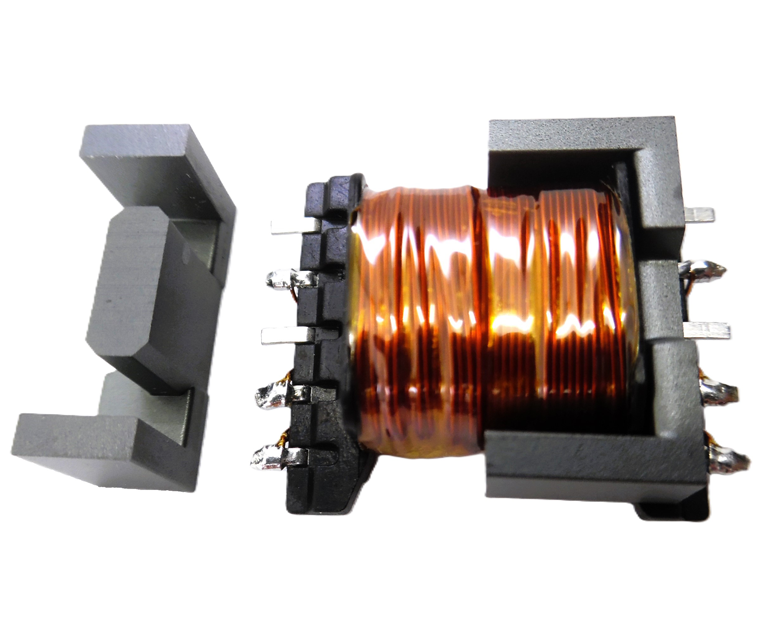

EFD Flyback Transformer with Surface Mount Pins

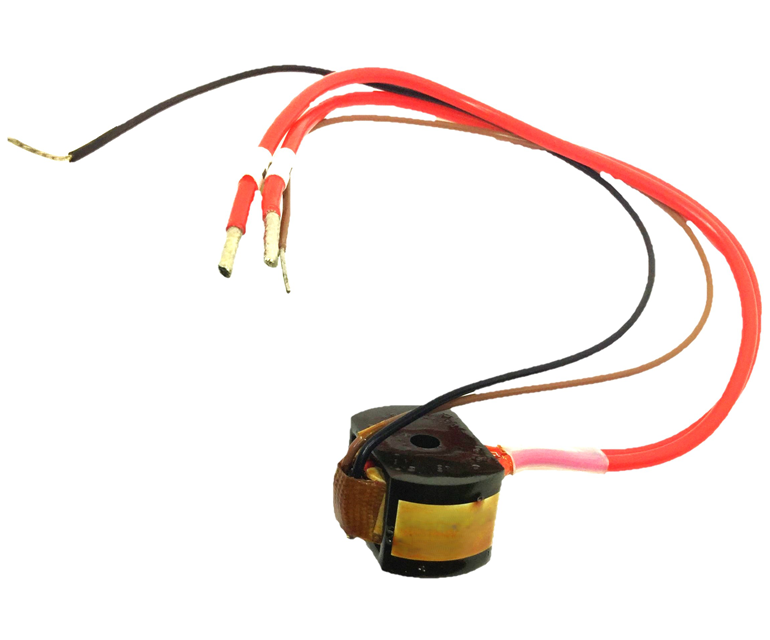

DS Transformer

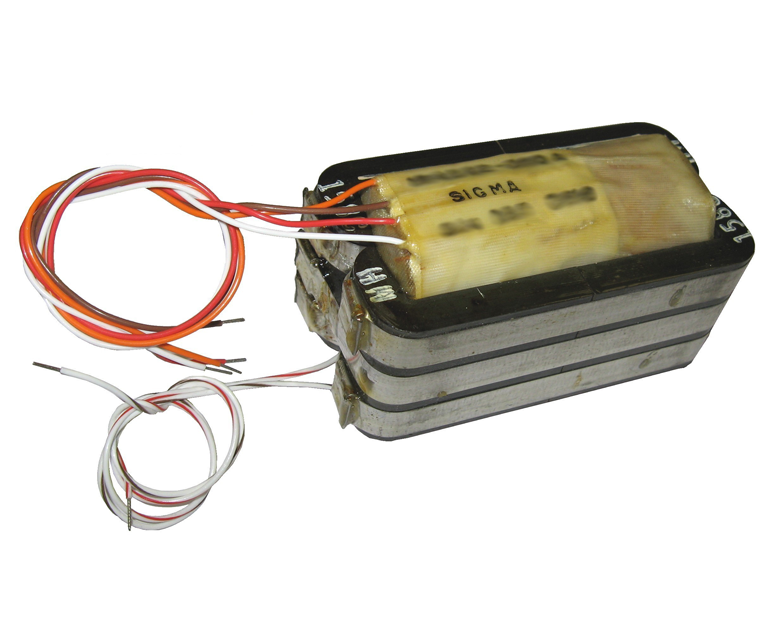

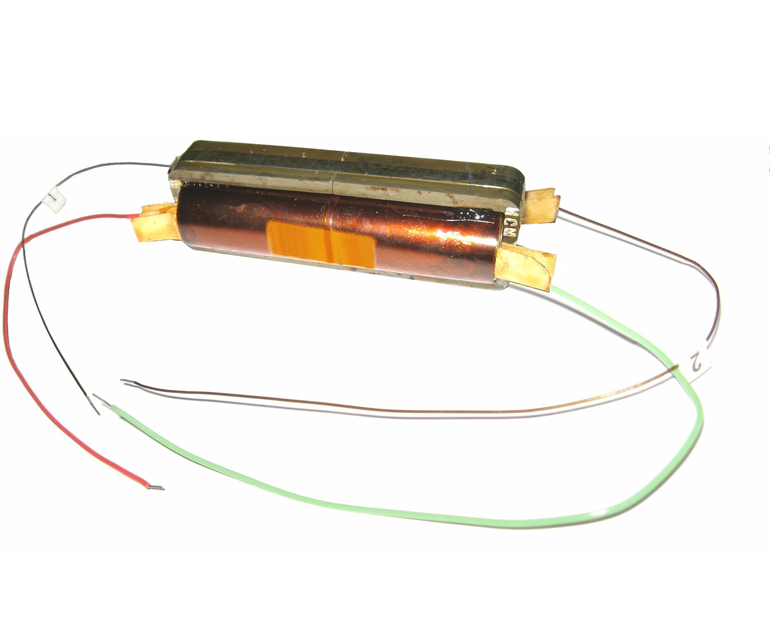

Cut Core Transformer with Soft Leads

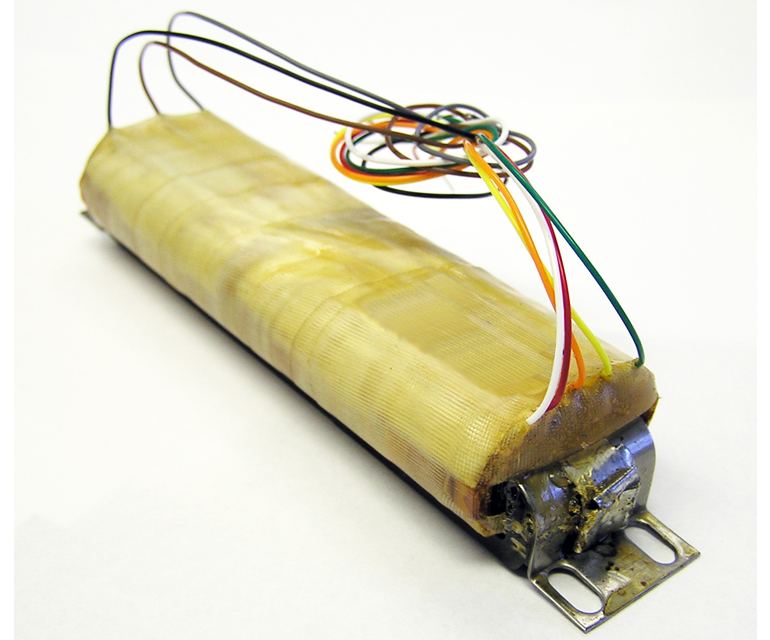

Cut Core Transformer with Custom Mounting

Cut Core Transformer with Soft Leads

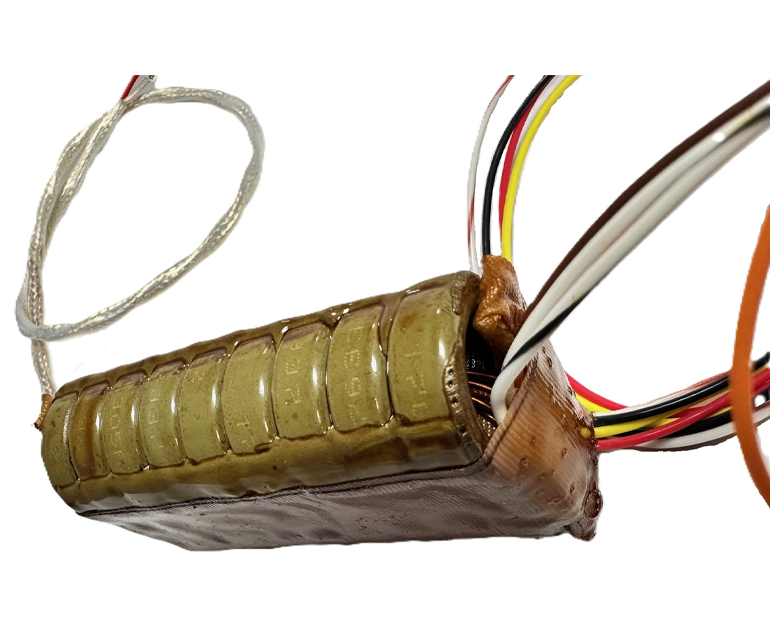

Custom Toroidal Balun Core Transformer

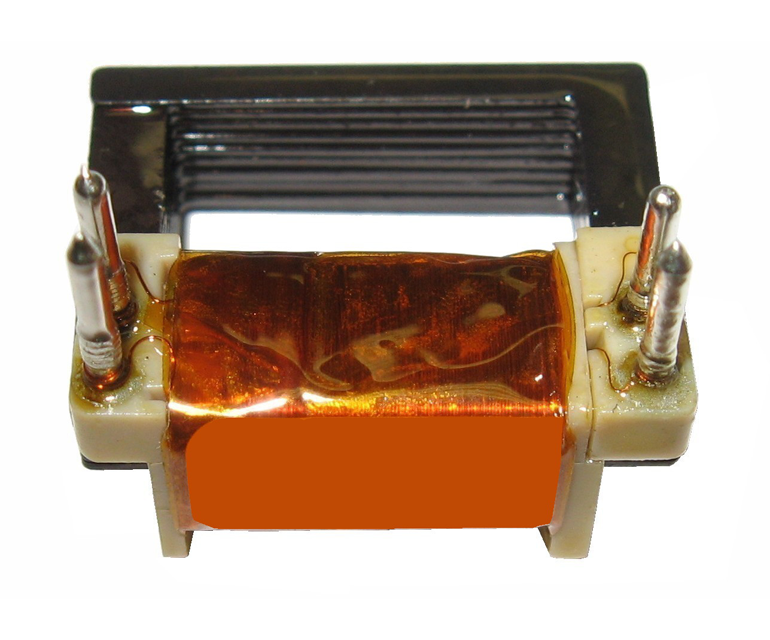

Custom Current Transformer terminated to Through Hole Pins

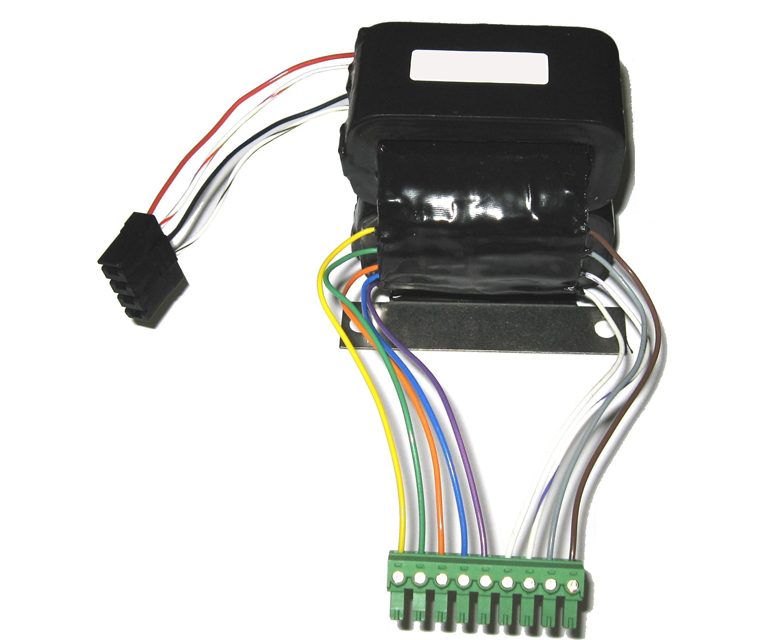

C-Core Transformer with Custom Mounting terminated to Soft Leads and Connectors and Epoxy Coated

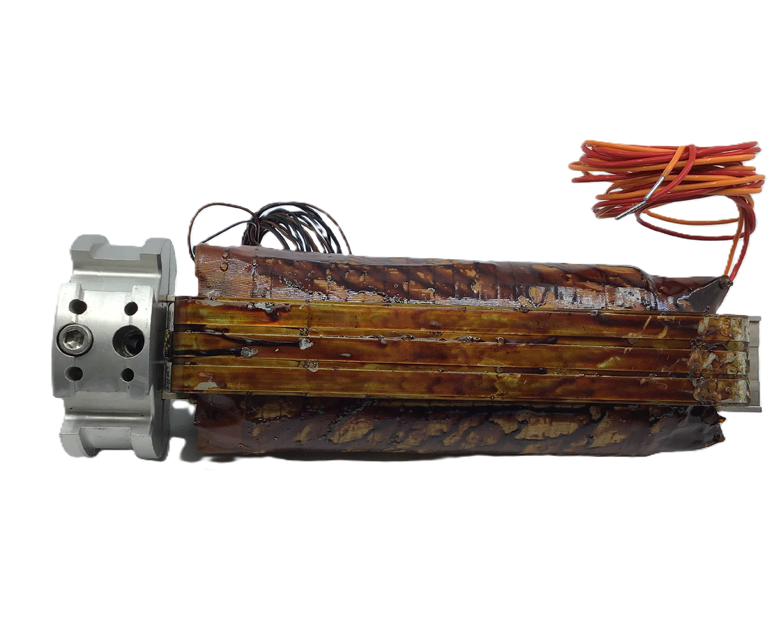

Cut Core Transformer with Mounting Beam

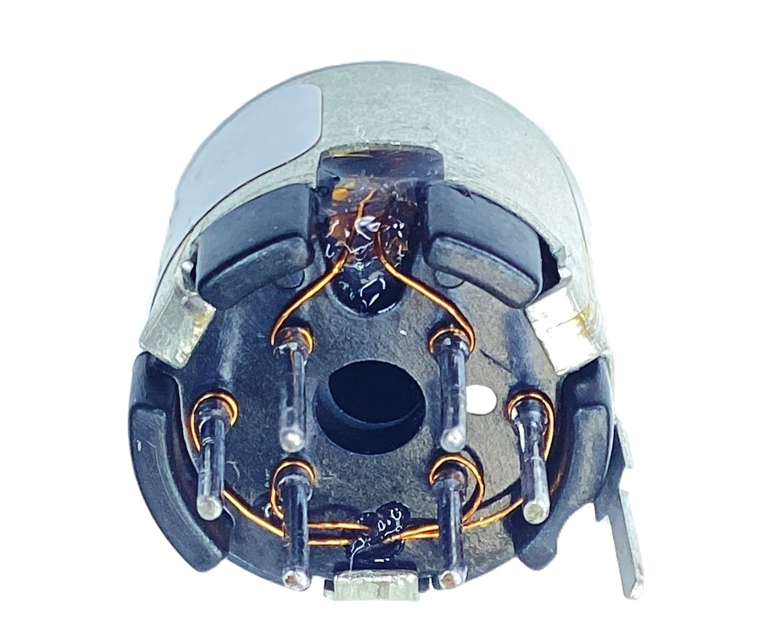

Pot Core Transformer mounted on Tag Plate (Through Hole Pins) and assembled with Spring and Can

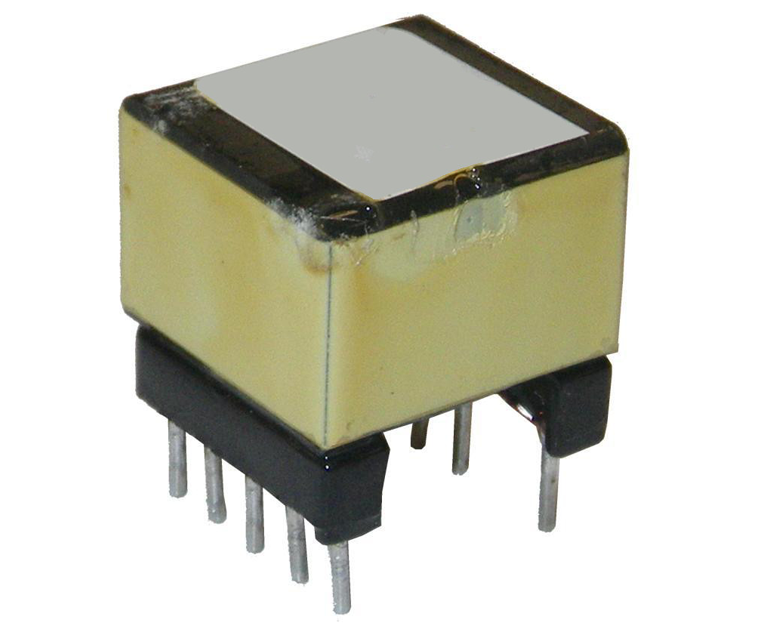

EPC Transformer with Through Hole Pins

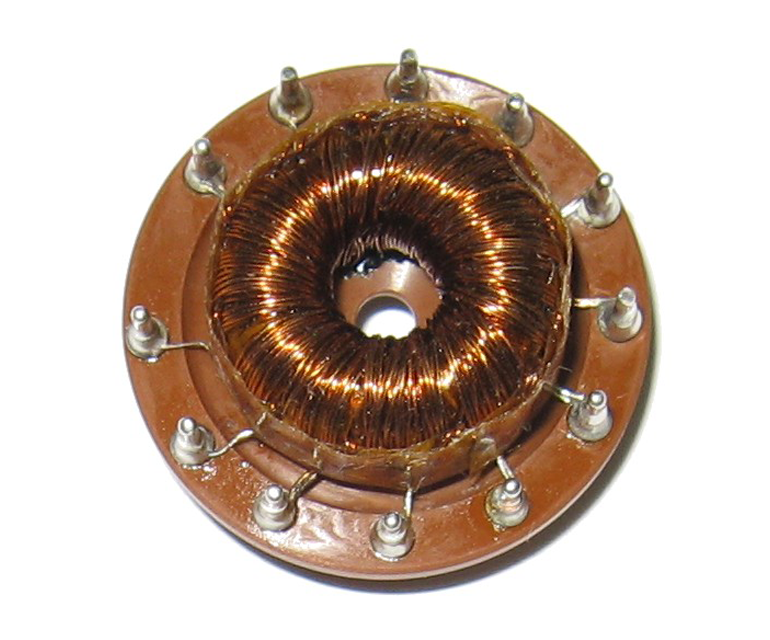

Transformer mounted on Custom Toroid Header with Through Hole Press in Pins

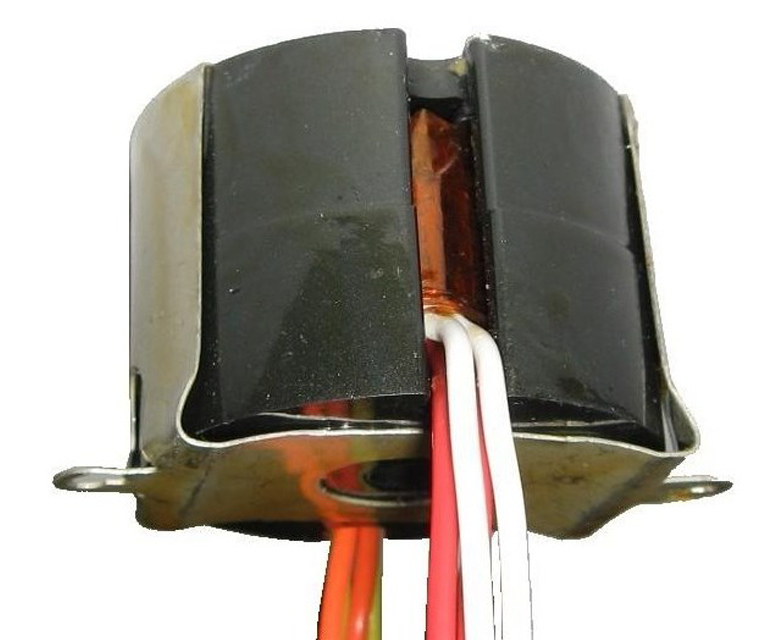

Pot Core Transformer with Soft Leads and Clamp with Mounting Tabs

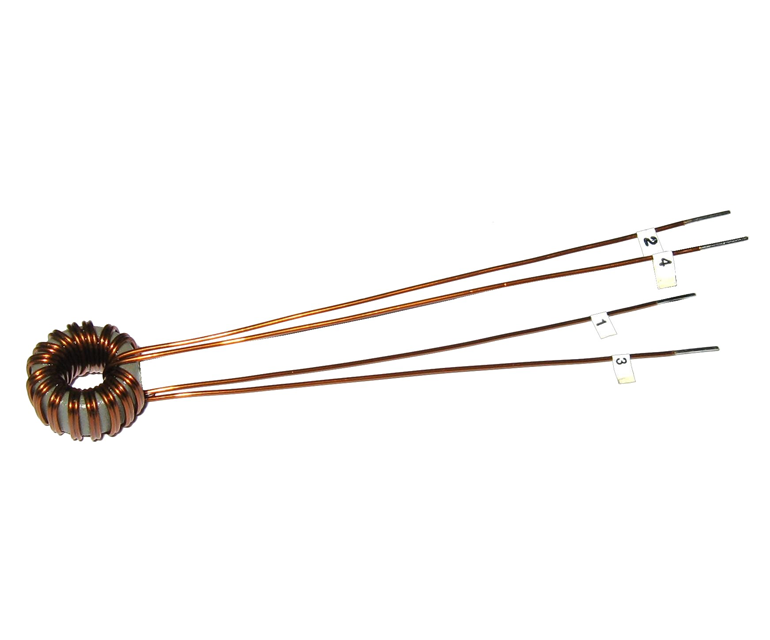

Transformer with Self Terminating Copper Wires

Fast Track Engineering Samples
